CategoriesGARAYE Xtreme Series
BrandGARAYE Lithium battery storage system

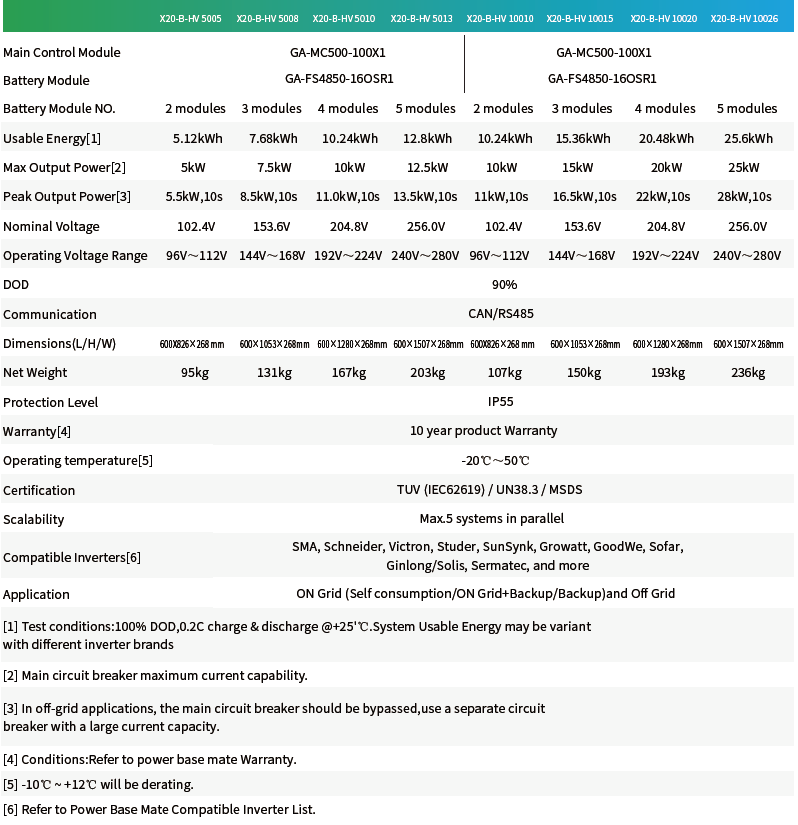

ModelGA X20B HV
Usable Energy5.12kWh~25.6kWh
Battery ModelGA-FS4850-16OSR1
Nominal Voltage102.4V~256.0V
CommunicationCAN/RS485
FOB portShenzhen, Hong Kong
Terms of PaymentL/C, T/T, Paypal
Update Time2021-09-27
Detail Information
Glory Xtreme 20-B HV | Stackable Home Energy Storage System UL | GARAYE

Description:

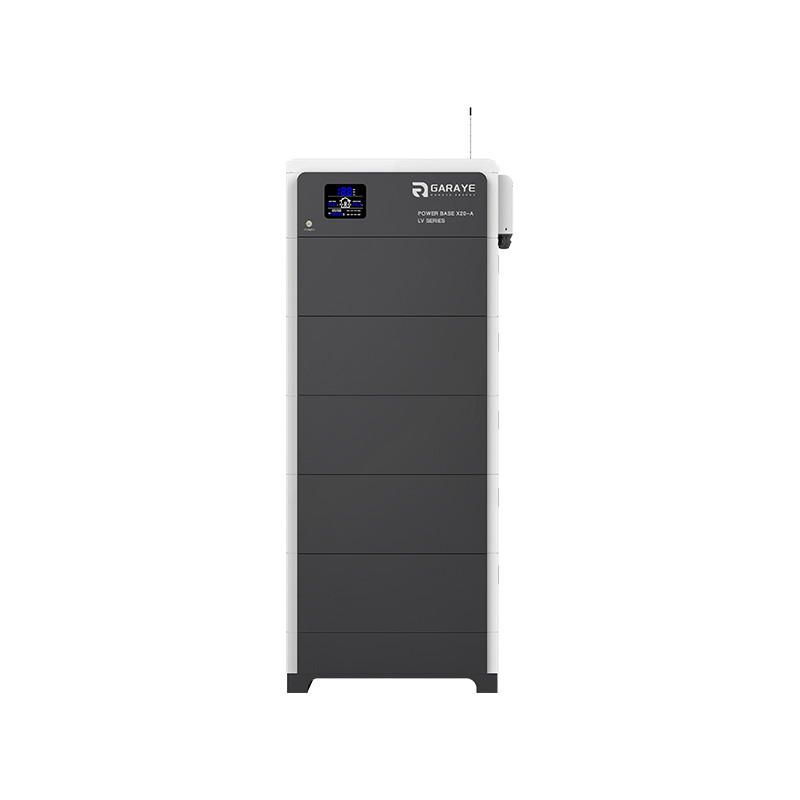

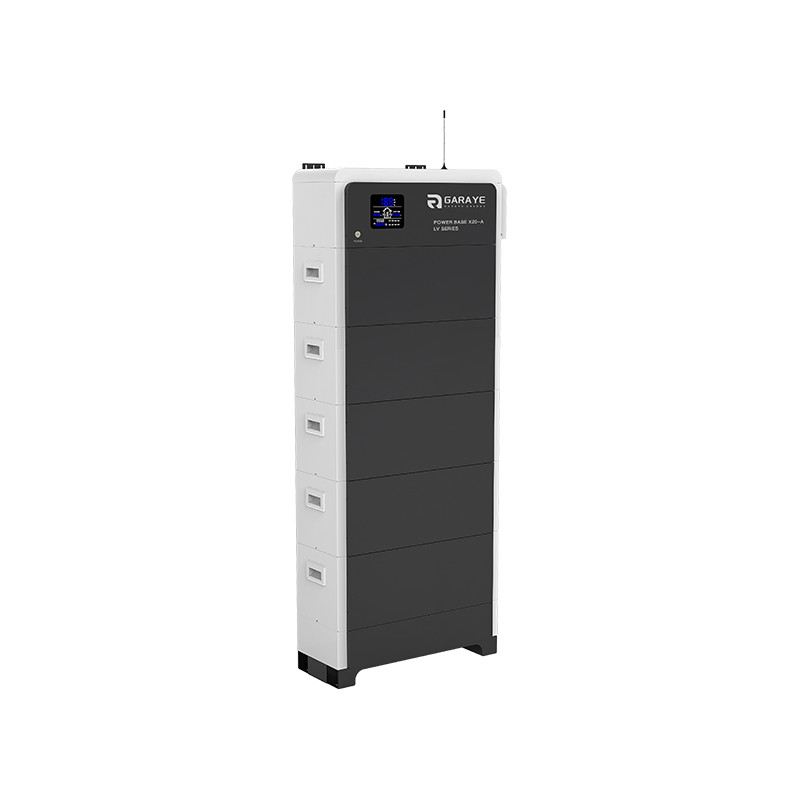

Glory Xtreme 20-B HV is a high voltage battery system acquired flexible modular design with no extra cables, which provides optimized safety, life span and performance. They are perfect batteries for all applications.
Each set of Power Base Mate contains up to 5 battery module PBL-2.56 in series connection and achieves usable capacity between 5.12 to 25.6 kWh.
Features:
PLUG & PLAY: Convenient and flexible
FLEXIBLE: Modular rack design for easier installation and smaller landscape
INTELLIGENT BMS: Intelligent BMS to ensure a safe reliable operation
SAFE AND RELIABLE: Adopt high safety, long life, excellent performance LiFePO4 prismatic cells
LONG LIFE SPAN: Over 4000 times of cycle life
INTERCONNECTION: Multiple communications including RS485, CAN
ECO FRIENDLY: No outgassing and zero ambient emissions
EXPANDABLE: Parallel on cabinet level available
Extensible
Good extensibility, supporting 15 systems to be used in parallel.
Adaptable
A single system supports a load power of 12kW and has good adaptability, which can be adapted to global mainstream photovoltaic inverters.
Stacked Installation
It can be quickly stacked according to actual demand capacity.
