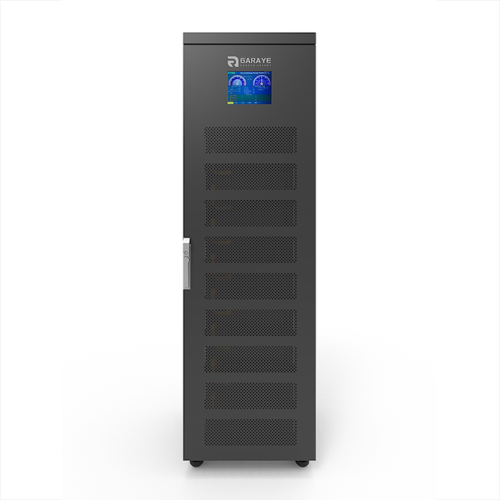

Glory CPS N50 | Lithium UPS Battery System | GARAYE

Glory CPS N50 | Lithium UPS Battery System | GARAYE

Glory CPS N50 | Lithium UPS Battery System | GARAYE
Glory CPS N50 | Lithium UPS Battery System | GARAYEGlory CPS N50 | Lithium UPS Battery System | GARAYEGlory CPS N50 | Lithium UPS Battery System | GARAYEGlory CPS N50 | Lithium UPS Battery System | GARAYE
CategoriesCluster Power Supply
BrandGARAYE Lithium battery storage system
ModelGlory CPS N50
Module Configuration160S1P
Nominal Capacity100Ah
Nominal Energy51.2kWh
ChemistryLiFePO4
Max. Charging Current100A
Max. Discharging Current100A
Battery Module TypeZR-FE4850-1630R1
Dimensions (W*H*D)600*2020 *600mm
MOQ20pcs
Weight500Kg
FOB portShenzhen, Hong Kong
Terms of PaymentL/C, T/T, Paypal
Update Time2021-09-27
Detail Information
Glory CPS N50 | Lithium UPS Battery System | Glory

Description:
Glory CPS N50 series product is a high-voltage lithium iron phosphate battery storage system independently Internal development by Glory Energy (Shenzhen) Co. Ltd. The rated voltage of the system is ±256Vdc or 512V, and the maximum which meets the requirement of a 20kW power supply. The parallel of varied systems is supported.
Power Base Venus series has a built-in BMS battery management system, which can manage and monitor cells information including voltage, current, and temperature. What's more, BMS can help to extend cycle life by balancing cells during charging and discharging.
Multiple batteries are connected in series to expand capacity and power to meet longer power support time and higher power consumption requirements.
Features:
The whole module is non-toxic, non-polluting and environmentally friendly;
Cathode material is made from LiFePO4 with safety performance and long cycle life;
Battery management system (BMS) has protection functions including over-discharge, over-charge, and over-current and high/low temperature;
The system can automatically manage charge and discharge state and balance current and voltage of each cell;
Flexible configuration, multiple battery modules can be internal for expanding voltage and Capacity.
Adopted self-cooling mode rapidly reduced system entire noise;
The module has less self-discharge, up to 6 months without charging it on shelf, no memory effect, excellent performance of shallow charge and discharge;
Working temperature range is from -10 to 55℃ , (Charging 0~45℃ ; discharging -10~55
℃ )with excellent discharge performance and cycle life;
Small size and light weight, standard of 19-inch embedded designed module is easy for installation and maintenance;


NO Item Parameters
1 Nominal energy ±256V51.2kwh 512V51.2kwh


2


Voltage
Standard charging voltage ±272V 544V
Maximum charging voltage ±292V 584V
Discharge cut off voltage ±240V 480V
2 Main Control Module ZR-MC500-150M
3 Battery Module Type ZR-FE4850-1630R1
4 Battery Module QTY 10
5 Module Configuration 160S1P
6 Nominal Capacity 100Ah
7 Nominal Energy 51.2kWh
8 Chemistry LiFePO4

9

Current
Max. Charging 100A
Max.Discharging 100A
Peak for 30s 150A
10 Weight (Approx.) 500Kg
11 Dimensions (L*H*W) 600*2020 *600mm
12 Communication RS485, CAN
13 Cycle Life ≥3500
14 Designed Calendar Life ≥10 years
15 Safety Function Over-charge, Over-discharge, Over-current, Low/High-temperature, Low-voltage, Short-circuit Protections
16 Parallel Capability Maximum 10 units (Recommended 6 units)
17 Cable Outlet Top-back

Adopt high safety, long life, excellent performance LiFePO4 prismatic cells
With a designed service life of 10 years, capable of providing and powering in full power.
High energy density - More capacity with less weight and volume.
High charge and discharge currents - Fast charge and discharges are possible.
Intelligent BMS to ensure a safe reliable operation;
Built-in self-developed smart BMS, which ensures the ability to conduct adjustments.
