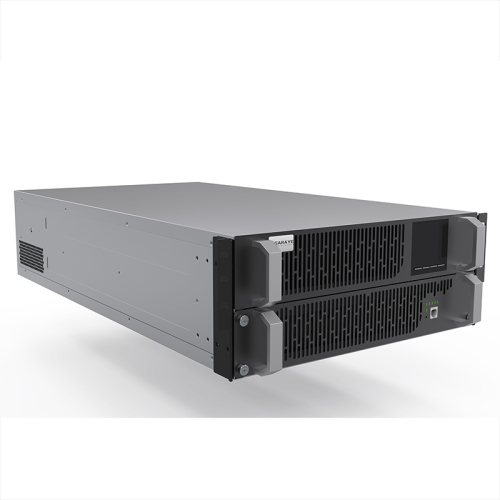

Glory RPS-B | Lithium UPS Battery System | GARAYE

Glory RPS-B | Lithium UPS Battery System | GARAYE

Glory RPS-B | Lithium UPS Battery System | GARAYE
Glory RPS-B | Lithium UPS Battery System | GARAYEGlory RPS-B | Lithium UPS Battery System | GARAYE
CategoriesRack Power Supply
BrandGARAYE Lithium battery storage system
ModelGlory RPS-B 6K-12KVA
Rated input voltageSingle-phase 220Vac
Voltage range176V~300Vac
Output Voltage204VDC~288VDC
Capacity6000 W / 12000 W
MOQ20pcs
FOB portShenzhen, Hong Kong
Terms of PaymentL/C, T/T, Paypal
Update Time2021-09-27
Detail Information
Glory RPS-B | Lithium UPS Battery System | GARAYE


Description:
The Glory RPS-B series of distributed power supply system are 220VAC input and 240V high-voltage DC output products. The rectifier of this series of products has a modular structure. The standard configuration is 4 3KW rectifier modules in parallel. The whole machine supports a maximum capacity of 12KW.
The height of the Joint series products is 4U/6U. According to the discharge time requirements of the load, select and configure the corresponding lithium battery pack. When the mains power is normal, the system rectifies, filters, and stabilizes the mains and then outputs it to the load. When the mains power is abnormal, the lithium battery system outputs electric energy to the load.
Features:

Simplify data center planning and design

Rapid deployment on demand

Modular design, the battery can be hot-swap, the load will not be powered off when the host is replaced

Compatible with T2/T3/T4 level in the same data center


Model ZR-D06240
1504
ZR-D06240
2006
ZR-D06240
2506
ZR-D06240
3006
ZR-D12240
1504
ZR-D12240
2006
ZR-D12240
2506
ZR-D12240
3006
Capacity 6000 W 12000 W
Input
Rated input voltage Single-phase 220Vac
Voltage range 176V~300Vac
Frequency range 45Hz ~65 Hz
Power factor ≧ 0.99
Output
Output voltage 204VDC~288VDC
Stabilization accuracy ± 0.5%
Current distortion (THD) ≦ 5 %
Efficiency ≧ 94 %
Current sharing ≦± 3%
Battery
Model 240V/15Ah 240V/20Ah 240V/25Ah 240V/30Ah 240V/15Ah 240V/20Ah 240V/25Ah 240V/30Ah
Charging time 8.5hrs 11hrs 13.5hrs 16hrs 8.5hrs 11hrs 13.5hrs 16hrs
Charging current 2A ± 10% (max.)
Exterior
Size (mm)
(W * H x*D)
440*177 *800 440*267*800 440*177 *800 440*267*800
Net weight (kg) 65 71 77 83 68 74 80 86
Environmental conditions
Operating temperature -5 ~ 45°C
Relative humidity +5% ~ +95%
Altitude <2000m
Management
Standard SNMP Support dedicated energy management software

Fast, flexible, distributed, and modular deployment

Modular design, the battery can be hot-swap, the load will not be powered off when the host is replaced

Effective use of space and load-bearing

The deployment does not require independent distributed power system space and battery room, and the number of effective cabinets increases by more than 40%.

Energy saving and emission reduction, cabinet-level energy management effectively combines cloud computing.

Cooperate with energy management system to realize cabinet-level energy management and coordinate with cloud computing for scheduling.
