CategoriesGARAYE Grand Series
BrandGARAYE Lithium battery storage system
ModelGlory Grand
Battery Module QTY18
Module Configuration144S1P
Nominal Capacity210Ah
Nominal Energy96.8kWh
ChemistryLiFePO4
Nominal Voltage460.8V
Recommend Charging Voltage511V
Max. Charging Voltage525V
Discharge Cut-off Voltage390V
Max. Charging Current120A
Max. Discharging Current120A
Peak for 30s Current150A
Weight (Approx.)1.0t
Dimensions (W*H*D)1270*2140*833mm
MOQ20pcs
FOB portShenzhen, Hong Kong
Terms of PaymentL/C, T/T, Paypal
Update Time2021-09-27
Detail Information

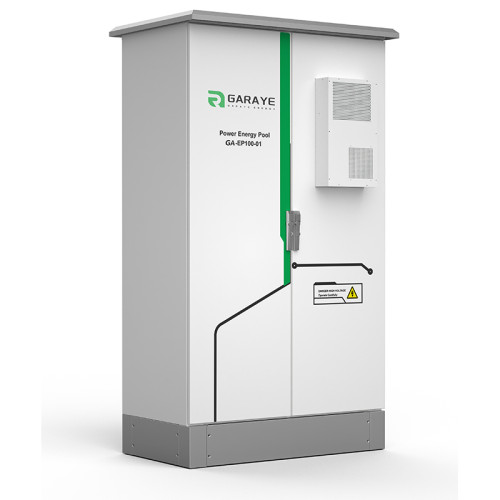

Glory Grand | Microgrid Energy Storage System | GARAYE

Description:
The Glory Grand product is a high-voltage lithium iron phosphate battery storage system independently developed in-house by Glory Energy (Shenzhen) Co., Ltd. The rated voltage of the system is 460.8V, and the maximum meets the requirements of 100kW power supply. The parallel of multi-systems is supported.
Features:
Adopt two-stage topology, wide voltage input range;
Can be inserted into photovoltaic panels, support photovoltaic direct charging ;
MPPT photovoltaic maximum power tracking function;
STS can achieve seamless switching off-grid;
PCS power 50kW-100kW, meeting the needs of microgrid;
Modular design, easy to install and easy to transport;
It adopts lithium iron phosphate battery with long life and high safety performance;
Each cluster has a battery capacity of 96.8kWh and supports 15 cluster expansion;
Integrate PCS, lithium battery system, and control cabinet to ensure product compatibility.
Scientific and safe, short construction period; green and environmental protection, promoting environmental friendliness; intensive land use, reducing resource consumption, etc.

Product Details
Battery Module QTY 18 Max. Discharging Current 120A
Module Configuration 144S1P Weight About 1.0t
Parallel Capability Maximum 10 units (Recommended 6 units) Dimensions (W*H*D) 1270*2140 *833mm
Nominal Energy 96.8kWh Communication RS485, CAN
Nominal Voltage 460.8V Cycle Life 3500 times@80%DOD
Max. Charging Current 120A Designed Calendar Life ≥10 years

Adopt two-stage topology, wide voltage input range
Multiple-layer topology provides a higher view in conducting protections, while a wider voltage range helps in covering bigger applications.
Can be inserted into photovoltaic panels, support photovoltaic direct charging; MPPT photovoltaic maximum power tracking function
Photovoltaic energy is the future of mankind, make full use of the star not so far from us.
Each cluster has a battery capacity of 96.8kWh and supports 15 cluster expansion
Capacity expansion makes it with potential to be put in the field in long-term consideration.
