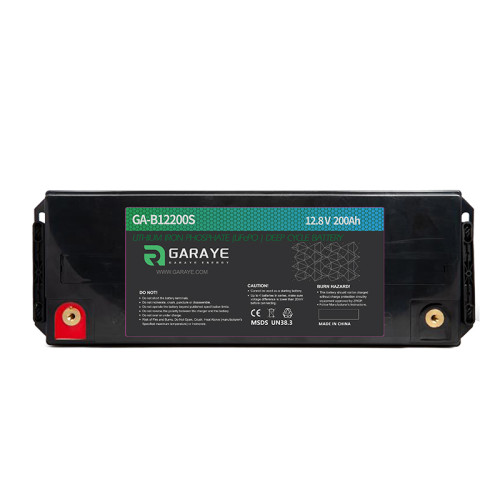

Glory Brick 12200S | Replacement Lithium Battery | GARAYE

Glory Brick 12200S | Replacement Lithium Battery | GARAYE

Glory Brick 12200S | Replacement Lithium Battery | GARAYE
Glory Brick 12200S | Replacement Lithium Battery | GARAYEGlory Brick 12200S | Replacement Lithium Battery | GARAYEGlory Brick 12200S | Replacement Lithium Battery | GARAYEGlory Brick 12200S | Replacement Lithium Battery | GARAYE
CategoriesLiFePo4 Deep Cycle Battery
BrandGARAYE Lithium battery storage system
ModelGA-B12200S
Nominal Capacity200Ah
Rated Energy2560Wh
Rated Voltage12.8V
Weight25kg
MOQ20pcs
FOB portShenzhen, Hong Kong
Terms of PaymentL/C, T/T, Paypal
Update Time2021-09-27
Detail Information
GA-B12200S | Replacement Lithium Battery | GARAYE replacement BlueTooth Support

Description:
Glory 12V lithium iron phosphate battery pack is designed and manufactured with features of high energy density, safe and reliable, long service life, etc. With its unique advantages, it is widely used in caravans, tourist coaches, electric two-wheelers, tricycles, emergency lights, security monitoring, and other power supply equipment. The universal dimensions with excellent performance provide the user with an ideal drop-in replacement solution for the traditional lead-acid battery.
Features:
It is composed of LiFePo4 battery cells in series and parallel, which have the characters of good safety performance, high energy density, and long cycle life.
Using laser welding craft, with a high degree of automation, low internal resistance, high energy efficiency, to ensure the welding quality.
Supports 4pcs in series connection for 12Vdc platform, 2pcs in series for 24Vdc platform, which provides a wide range of applications.
Built-in intelligent BMS optimizes the performance and safety of the battery by automatically balancing cells and protecting them from overcharge, over-discharge, over current, short circuit, high and low temperature protection functions, graded alarm and wireless monitoring functions.
Using the lithium-ion battery, green and eco-friendly, low lifetime cost.
Independently developed products, we can arrange experienced engineers to provide technical support
Customized solutions can be provided according to the user scenarios.
BlueTooth Support, Through the self-developed ZRGP mobile application, you can remotely monitor the operating status of the battery via Bluetooth, and support both Android and IOS.

Product Details
Nominal Capacity(Ah) 100 Weight(kg) 13.5 Cycle Life ≥2000
Rated energy(Wh) 1280 Rated Voltage(V) 12.8 Operating Voltage(V) 10.0-14.6
Charge Ending Voltage(V) 14.2 (Max.14.6) Discharge Ending Voltage(V) 10 Physical dimensions(mm)(L*W*H) 326*170*216
Operating Temperature( Charge)℃ -15~45℃ Operating Temperature( Discharge)℃ -10~60℃ Shell Type ABS
Max. Charge Curren(A) ≤100 Standard Discharge Current(A) 50 Max. Discharge Current(A) ≤100

100% DOD
Our battery will perform for over 2,000 cycles at 100% DOD, compared with only 500 cycles at 80% DOD of a lead-acid battery.
Warranty
3 years manufacturer′s defect warranty
BlueTooth Support
Through the self-developed ZRGP mobile application, you can remotely monitor the operating status of the battery via Bluetooth, and support both Android and IOS.
